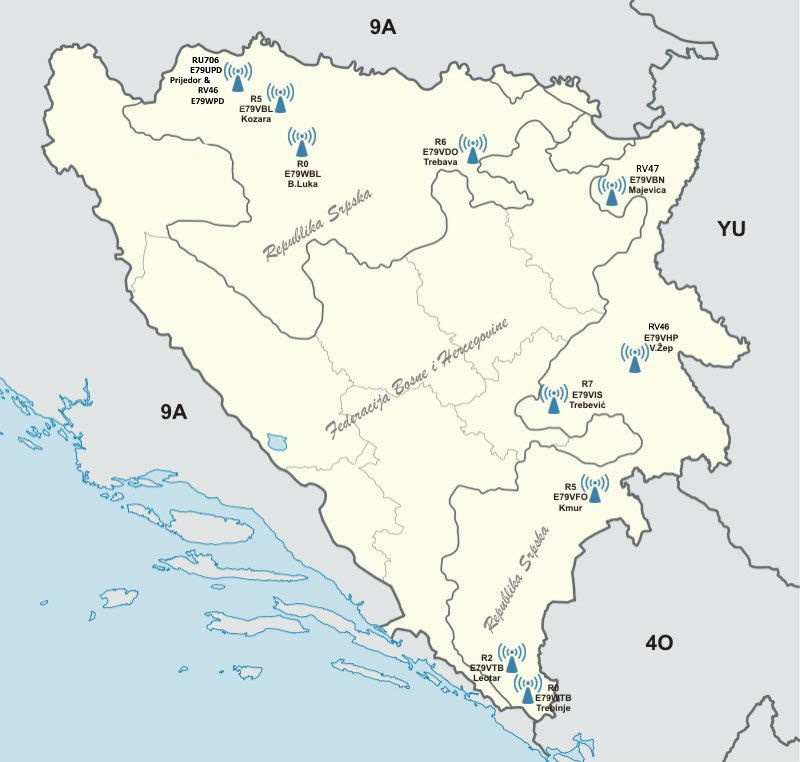

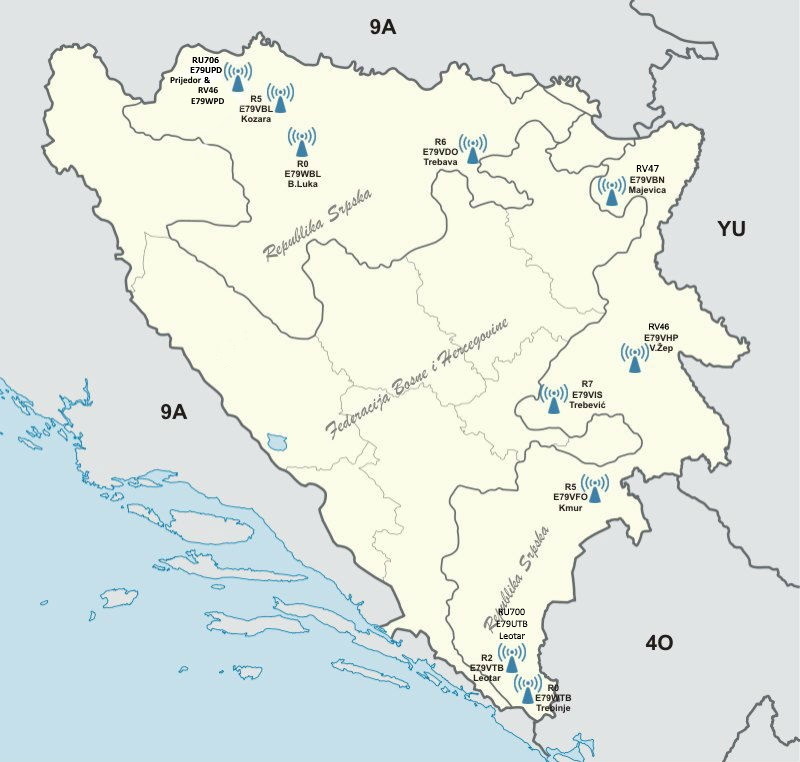

O s n o v n i g e o g r a f s k i p o d a c i |
|||||||||
Status | Kanal | Znak | Naziv kote | m.asl | UL | Mjesto | Primarna zona servisa | ||
R2 / RV52 | E79VTB | Leotar | 1228 | JN92ER | Trebinje | Regija Istočne Hercegovine | |||
RV46 | E79VHP | V.Žep | 1537 | JN94MB | Han Pijesak | Regija Podrinja | |||
RV47 | E79VBN | Udrigovo | 533 | JN94GJ | Bijeljina | Regija Semberije | |||
R5 / RV58 | E79VFO | Kmur | 1508 | JN93IL | Foča | Regija Stare Hercegovine | |||
R5 / RV58 | E79VBL | Kozara | 955 | JN84LX | Banja Luka | Regija Krajine | |||
R6 / RV60 | E79VDO | Trebava | 567 | JN94BS | Doboj | Regija Doboja | |||
R7 / RV62 | E79VIS | Trebević | 1600 | JN93FT | I.Sarajevo | Romanijsko-Sarajevska | |||
R0 / RV48 | E79WTB | Hum | 401 | JN92DQ | Trebinje | Trebinje, Popovo polje | |||
R0 / RV48 | E79WBL | Ponir | 500 | JN84OR | Banja Luka | Banja Luka | |||
RV46 | E79WPD | Vatrogasni stub |
150 | JN84IX | Prijedor | Prijedor | |||
RU700 | E79UTB | Leoar | 1228 | JN92ER | Trebinje | Regija Istočne Hercegovine | |||
RU706 | E79UPD | Vatrogasni stub |
150 | JN84OR | Prijedor | Prijedor |
O s n o v n i t e h n i č k i p o d a c i | ||||||||||
Kanal | Znak | MHz |
SQL tip |
Marka | Model | Pout | Duplexer | Antena | dBd | ID tip |
R2/RV52 | E79VTB | 145.650 | CSQ | Motorola | 2 x GM360 |
25W | IK-Telecom DPRE4-6L | Procom CXL2-3C/s | 3.15 |
voice/cw |
RV46 | E79VHP | 145.575 | CSQ | Motorola | MTR2000 | 15W | Wacom WP-637 | Procom CXL2-3C/s |
3.15 |
voice/cw |
RV47 |
E79VBN | 145.5785 | CSQ | Motorola | 2xGM300 | 25W | nema | 2 x vert. dipol |
0 | voice/cw |
R5/RV58 | E79VFO | 145.725 | CSQ | Motorola | MSF-5000 |
25W | Wacom WP-637 | Procom CXL2-3C/s |
3.15 | voice/cw |
R5/RV58 | E79VBL | 145.725 | CSQ | Motorola | R100 | 25W | IK-Telecom DPRE4-6L | voice/cw | ||
R6/RV60 | E79VDO | 145.750 | CSQ | Storno | CQF-612 | 25W | Wacom WP-637 | UW-300a | 6 | voice/cw |
R7/RV62 | E79VIS | 145.775 | CSQ | VHF Eng. | RPT144 | 10W | Wacom WP-637 | Procom CXL2-3C/s | 3.15 | voice/cw |
R0/RV48 | E79WTB | 145.600 | CSQ | Motorola | GM350/M110 |
4W | Wacom WP-637 | Sirtel SA-202A |
6 | voice/cw |
R0/RV48 | E79WBL | 145.600 | CSQ | VHF Eng. | RPT144 | 5W | Wacom WP-637 | Hi-Gain V2R |
3 | cw |
RV46 | E79WPD | 145.575 |
CSQ |
Motorola | 2xGM350 | 5W | Wacom WP-637 | Hi-Gain V2R | 3 | nema |
RU700 | E79UTB | 438.750 | CSQ | Motorola | GM300 | 10W | Procom | Vert. dipol | 0 | voice/cw |
RU706 | E79UPD | 438.825 | CSQ |
